MDC Logo Stage Curtains
( layout 1 )

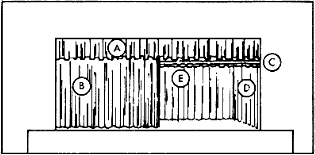

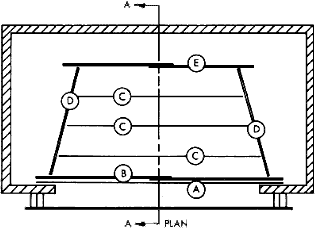

  The following illustrations demonstrate various track layouts for auditorium stages.
It is obvious that many versatile and diversified settings can be obtained through the use
and application of ADC's all-purpose line of stage tracks. In the legend accompanying
each layout are the specific ADC models recommended for the various required tracks.



LEGEND
  1. Valance (1 1/4" or 1 1/2" pipe)
  2. Front Curtain Track (Model 170 for up to 36",
    Model 280 for over 36")
  3. Ceiling Borders (1 1/4" or 1 1/2" pipe)
  4. Side Leg Tracks (Same as B)
  5. Rear Curtain Track (Same as B)
Layout 2
